AD 2 AERODROMES

VOCL

AD 2.2

AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA

1	Aerodrome reference point coordinates and its site	110816N 0755702E MAG BRG 096.46 DEG/859M from physical extremity of RWY 10
2	Direction and distance of aerodrome reference point from the center of the city or town which the aerodrome serves	127 DEG, 28KM from Calicut Railway Station
3	Aerodrome elevation and reference temperature	343 FT / 31.0 DEG C
4	Magnetic variation, date of information and annual change	2.11 DEG W (2010) /0.033 DEG E
5	Name of aerodrome operator, address, telephone, telefax, e-mail address, AFS address, website (if available)	Airport Director, Airports Authority of India, Calicut International Airport, Karipur-673647.,
		Telephone:	Tel +91-483-2719400 (O) +91-483-2719500 (R) Mobile +91-9562406400 +91-9847245543
		Fax:	+91-483-2711406
		AFS:	VOCLYHYX
		Email:	apd_calicut@aai.aero
6	Types of traffic permitted (IFR/VFR)	IFR/VFR
7	Remarks	Elevation in EGM 08

VOCL

AD 2.3

OPERATIONAL HOURS

1	Aerodrome Operator	MON-FRI 0400-1230 UTC (0930-1800 IST) SAT/SUN/HOLIDAY: NIL.
2	Custom and immigration	As ATS
3	Health and sanitation	H24
4	AIS briefing office	H24
5	ATS reporting office (ARO)	H24
6	MET Briefing office	H24
7	Air Traffic Service	H24
8	Fuelling	H24
9	Handling	H24
10	Security	H24
11	De-icing	NIL
12	Remarks	The ATS approved hourly RWY traffic handling capacity is as follows: Maximum number of arrivals and departures -12 Maximum number of arrivals only -06 Maximum number of departures only -10

VOCL

AD 2.4

HANDLING SERVICES AND FACILITIES

1	Cargo-handling facilities	Available
2	Fuel and Oil types	JET A1
3	Fuelling facilities and capacity	BPCL: 5 Bowsers (75 KL), 3 Storage Tanks outside AD(600KL). IOCL: 6 Bowsers (137 KL), Storage Tanks (740KL). HPCL: 6 Bowsers (130 KL), Storage Tanks (800KL). RELIANCE LTD: 6 Bowsers (108 KL), 2 Storage Tanks outside AD(860KL).
4	De-icing facilities	Not applicable
5	Hangar space for visiting aircraft	NIL
6	Repair facilities for visiting aircraft	NIL
7	Remarks	NIL

VOCL

AD 2.5

PASSENGER FACILITIES

1	Hotel(s) at or in the vicinity of aerodrome	Near the AD and in the city.
2	Restaurant(s) at or in the vicinity of aerodrome	At AD, near the AD and in the city.
3	Transportation possibilities	Taxis from the AD and state transport buses.
4	Medical Facilities	Doctor on request & first aid at AD. Hospitals near AD & in the city.
5	Bank and post office at or in the vicinity of aerodrome	Banks: At AD. Open from 1030 Hrs to 1500 Hrs Post office: open with AD Administration HR.
6	Tourist office	Tourist information counter at AD.
7	Remarks	NIL

VOCL

AD 2.6

RESCUE AND FIRE FIGHTING SERVICES

1	Aerodrome category for fire fighting	CAT IX between 0330-1130 daily and CAT VIII between 1131-2359 and 0000-0329.
2	Rescue equipment	Available as per category
3	Capability for removal of disabled aircraft	Lifting and pulley machine up to 5 Tonnes at AD. Higher capacity available in the city.
4	Remarks	NIL

VOCL

AD 2.7

SEASONAL AVAILABILITY CLEARING

1	Type(s) of clearing equipment	NIL
2	Clearance priorities	NIL
3	Remarks	NIL

VOCL

AD 2.8

APRONS, TAXIWAYS AND CHECK LOCATIONS/POSITIONS DATA

1	Designation, surface and strength of aprons	Refer Aircraft Parking/Docking Chart
2	Designation, width, surface and strength of taxiways	Refer Aircraft Parking/Docking Chart
3	Location and elevation of altimeter checkpoints	Location Apron Elevation 334FT
4	Location of VOR checkpoints	TWY-A 110817.00N 0755659.19E / ELEV: 335 FT
5	Position of INS checkpoints	NIL
6	Remarks	1. Coordinates of Taxi Holding Position i. TWY A: 110816.654N 0755659.127E / ELEV: 335FT ii. TWY B: 110815.859N 0755703.319E / ELEV: 334FT iii. TWY C: 110815.012N 0755707.773E / ELEV: 336FT iv. TWY D: 110812.486N 0755648.885E / ELEV: 323FT Geoid Model Used: EGM08
		Location of TWY’s from RWY 28 THR/Additional information of TWY’s
			TWY A	TWY B	TWY C	TWY D
		Distance	2130M	1990M	1829M	2377M
		Length	102M	102M	102M	175M
		Shoulder on either side	10.5M	10.5M	10.5M	10.5M

VOCL

AD 2.9

SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND MARKINGS

1	Use of aircraft stand identification signs, taxiway guidelines and visual docking/parking guidance system at aircraft stands	Taxiing guidance signs provided at all intersections and taxi holding PSN. Aircraft stand markings, apron side strip marking and guidelines provided on the Apron & isolation parking stand. Visual Docking Guidance System - Available for all Aerobridge stands except 5A & 9

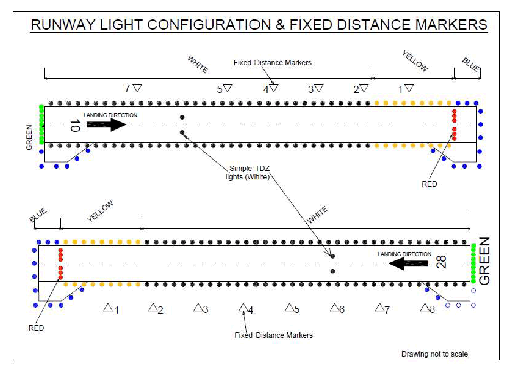

2	Runway and taxiway markings and lights	RWY Markings Designation, THR, TDZ, Aiming Point, Centreline, Transverse stripe & side stripe. Lighting THR,RWY THR IDENT, EDGE, and END TWY Marking Centreline, side strip, Holding PSN at All TWY/RWY intersection Lighted Edge, RWY Guard Lights on TWY's A, B, C
3	Stop bars (if any)	Not available.
4	Remarks	180 Degree turn permitted only on turning pad.

VOCL

AD 2.10

AERODROME OBSTACLES

In Approach/Take-off/Circling Area and at AD
1	2	3	4	5	6
RWY/Area affected	Obstacle type	Coordinates	Elevation ( EGM 08)	Marking/LGT	Remarks
In circling area and at AD	NAVAID	110813.2N 0755639.9E	334 FT	NIL	GP Monitor Antenna
In circling area and at AD	NAVAID	110812.7N 0755642.5E	376 FT	NIL	GP Antenna
In circling area and at AD	NAVAID	110812.7N 0755642.5E	343 FT	LGTD	GP DME
In circling area and at AD	BUILDING	110812.5N 0755642.8E	325 FT	NIL	Security Hut
In circling area and at AD	BUILDING	110812.9N 0755642.9E	324 FT	NIL	Security Hut
In circling area and at AD	BUILDING	110812.7N 0755642.7E	325 FT	NIL	GP Hut
In circling area and at AD	ANTENNA	110818.4N 0755653.1E	333 FT	NIL	Met Antenna
In circling area and at AD	TANK	110823.9N 0755652.4E	407 FT	LGTD	OHWT [L]
In circling area and at AD	ANTENNA	110819.9N 0755644.4E	328 FT	NIL	MET Antenna
In circling area and at AD	FENCE	110810.0N 0755650.7E	365 FT	NIL	Boundary Wall With Fencing On Top
In circling area and at AD	OTHER	110818.6N 0755646.1E	344 FT	LGTD	WDI
In circling area and at AD	TREE	110813.2N 0755636.5E	343 FT	NIL	Group Of Trees
In circling area and at AD	OTHER	110813.4N 0755637.1E	328 FT	NIL	Mobile Road Traffic (Road Elev.-95.1M + 5M Mobile Road Traffic)
In circling area and at AD	FENCE	110813.3N 0755637.3E	322 FT	NIL	Boundary Wall
In circling area and at AD	OTHER	111125.4N 0755624.5E	816 FT	LGTD	Olavator Hill (Solar Light)
In circling area and at AD	OTHER	110800.6N 0755807.4E	327 FT	NIL	Approach Light
In circling area and at AD	TREE	110758.1N 0755807.0E	333 FT	NIL	Bush Type Tree
In circling area and at AD	TREE	110810.2N 0755750.9E	347 FT	NIL	Group Of Trees
In circling area and at AD	NAVAID	110805.1N 0755756.6E	337 FT	LGTD	GP DME Lighted
In circling area and at AD	OTHER	110801.6N 0755751.3E	345 FT	LGTD	WDI
In circling area and at AD	NATURAL HIGHPOINT	110726.2N 0755926.1E	523 FT	NIL	Ground Elevation
In circling area and at AD	NATURAL HIGHPOINT	110722.0N 0755928.3E	670 FT	NIL	Ground Elevation
In circling area and at AD	ANTENNA	110805.5N 0755755.0E	341 FT	LGTD	MET Antenna (Lighted)
In circling area and at AD	BUILDING	110805.1N 0755756.3E	333 FT	NIL	GP Hut
In circling area and at AD	NAVAID	110804.4N 0755759.2E	339 FT	NIL	GP Monitor Antenna
In circling area and at AD	NAVAID	110805.0N 0755756.5E	373 FT	NIL	GP Antenna
In circling area and at AD	OTHER	110910.8N 0755841.5E	823 FT	LGTD	Cheppilla Kunnu Hill Solar Light
In circling area and at AD	OTHER	110719.1N 0755929.8E	823 FT	LGTD	Puttodimala Hill Solar Light
In circling area and at AD	OTHER	110630.3N 0760036.4E	1162 FT	LGTD	Arimbara Kunnu Hill Solar Light
In circling area and at AD	OTHER	110517.9N 0760035.1E	1576 FT	LGTD	Urugu / Urotmala Hill Solar Light
In circling area and at AD	NATURAL HIGHPOINT	110643.7N 0755859.7E	794 FT	NIL	Cherpaddimala Hill - Ii
In circling area and at AD	OTHER	110901.1N 0755914.9E	650 FT	NIL	Cell Phone Mast
In circling area and at AD	OTHER	110559.6N 0760014.7E	1157 FT	LGTD	Muchhu Kunnu Hill Tree Top (Solar Light Top- 347.6M)
In circling area and at AD	TREE	110727.6N 0755921.5E	505 FT	NIL	Group Of Trees On Hill
In circling area and at AD	TREE	110727.4N 0755927.4E	540 FT	NIL	Group Of Trees On Hill
In circling area and at AD	NATURAL HIGHPOINT	110724.9N 0755927.7E	572 FT	NIL	Ground Elevation
In circling area and at AD	NATURAL HIGHPOINT	110724.8N 0755927.2E	585 FT	NIL	Ground Elevation
In circling area and at AD	TREE	110724.0N 0755927.9E	635 FT	NIL	Group Of Trees
In circling area and at AD	NATURAL HIGHPOINT	110724.0N 0755927.9E	600 FT	NIL	Ground Elevation On Hill
In circling area and at AD	NATURAL HIGHPOINT	110726.3N 0755927.6E	495 FT	NIL	Ground Elevation
In circling area and at AD	NATURAL HIGHPOINT	110726.6N 0755926.7E	508 FT	NIL	Ground Elevation
In circling area and at AD	BUILDING	110803.5N 0755733.4E	331 FT	NIL	Security Hut
In circling area and at AD	ANTENNA	110822.7N 0755656.0E	398 FT	NIL	Antenna On Technical Block (Bldg. Top- 116.4m)
In circling area and at AD	OTHER	110822.1N 0755655.6E	404 FT	NIL	LC Rod On ATC (ATC Bldg. Top- 114.0M)
In circling area and at AD	ANTENNA	110822.0N 0755655.7E	401 FT	NIL	VHF Antenna On ATC
In circling area and at AD	OTHER	110822.0N 0755655.7E	395 FT	LGTD	ATC Beacon (L)
In circling area and at AD	OTHER	110819.8N 0755711.1E	405 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110820.1N 0755709.5E	404 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110820.4N 0755707.9E	403 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110820.9N 0755705.4E	403 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110821.3N 0755703.1E	404 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110821.7N 0755701.0E	404 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110822.0N 0755659.3E	405 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110822.2N 0755658.2E	405 FT	NIL	Flood Light Mast
In circling area and at AD	OTHER	110821.8N 0755656.9E	391 FT	NIL	Flood Light Mast
In circling area and at AD	TREE	110807.0N 0755709.0E	347 FT	NIL	Group Of Trees
In circling area and at AD	TREE	110807.0N 0755702.6E	369 FT	NIL	Group Of Trees
In circling area and at AD	TREE	110807.9N 0755658.7E	365 FT	NIL	Group Of Trees
In circling area and at AD	TREE	110806.9N 0755652.1E	405 FT	NIL	Group Of Trees
In circling area and at AD	OTHER	110811.0N 0755657.9E	351 FT	LGTD	WDI
In circling area and at AD	OTHER	110818.5N 0755646.1E	343 FT	LGTD	WDI
In circling area and at AD	BUILDING	110807.3N 0755651.4E	374 FT	NIL	House
In circling area and at AD	BUILDING	110810.0N 0755651.5E	361 FT	NIL	Security Hut
In circling area and at AD	TREE	110809.8N 0755650.7E	373 FT	NIL	Group Of Trees
In circling area and at AD	TREE	110802.6N 0755719.8E	372 FT	NIL	Group Of Trees
In circling area and at AD	NAVAID	110803.9N 0755720.0E	354 FT	NIL	DVOR Monitor Antenna
In circling area and at AD	NAVAID	110806.0N 0755718.1E	357 FT	LGTD	DVOR DME (Lighted)
In circling area and at AD	OTHER	110805.4N 0755718.3E	363 FT	LGTD	Lightning Rod Near DVOR
In circling area and at AD	NAVAID	110805.7N 0755718.0E	351 FT	NIL	DVOR Main Antenna
In circling area and at AD	BUILDING	110805.1N 0755755.8E	329 FT	NIL	Security Hut
In circling area and at AD	NATURAL HIGHPOINT	110700.0N 0755803.8E	531 FT	NIL	Cherpaddi Mala Hill
In circling area and at AD	NATURAL HIGHPOINT	110517.7N 0760133.7E	1083 FT	NIL	Hill Top
In circling area and at AD	NATURAL HIGHPOINT	110504.5N 0760246.7E	1034 FT	NIL	Hill Top

VOCL

AD 2.11

METEOROLOGICAL INFORMATION PROVIDED

1	Name of the associated meteorological office	Calicut
2	Hours of service and, where applicable, the designation of the responsible meteorological office outside these hours	H24
3	Office responsible for preparation of TAFs and periods of validity and interval of issuance of the forecasts	Trivandrum 9, 24HR
4	Availability of the trend forecast for the aerodrome and interval of issuance	Trend Trend Half Hourly
5	Information on how briefing and/or consultation is provided	Personal ConsultationOn request Personal Consultation
6	Types of flight documentation supplied and language(s) used in flight documentation	Chartsabbreviated plain language English
7	Charts and other information displayed or available for briefing or consultation	NIL
8	Supplementary equipment available for providing information on meteorological conditions, e.g. weather radar and receiver for satellite images;	DIWE for RWY 10 & 28 Anemometer: 2320M from THR RWY 28.
9	The air traffic services unit(s) provided with meteorological information	Calicut TWR/APP
10	Additional information, e.g. concerning any limitation of service.	Half hourly METAR at every hour (UTC) and hour + 30 minutes.

VOCL

AD 2.12

RUNWAY PHYSICAL CHARACTERISTICS

Designations	TRUE Bearings	Dimensions of RWY (M)	Strength of pavement (PCN) and associated data) and surface of runway and associated stopways	Geographical coordinates for threshold and runway end
1	2	3	4	5
10	100.90 DEG	2860 x 45 M	71/F/B/W/T Concrete/Asphalt	THR: 110818.40N 0755633.84E RWY END: 110800.80N 0755806.41E
28	280.90 DEG	2860 x 45 M	71/F/B/W/T Concrete/Asphalt	THR: 110800.80N 0755806.41E RWY END: 110818.40N 0755633.84E

Designations

TRUE Bearings

Dimensions of RWY (M)

Strength of pavement

(PCN) and associated

data) and surface of runway and associated stopways

Geographical

coordinates for

threshold and

runway end

100.90 DEG

2860 x 45 M

71/F/B/W/T

Concrete/Asphalt

THR:

110818.40N

0755633.84E

RWY END:

110800.80N

0755806.41E

280.90 DEG

2860 x 45 M

71/F/B/W/T

Concrete/Asphalt

THR:

110800.80N

0755806.41E

RWY END:

110818.40N

0755633.84E

THR elevation and highest elevation of TDZ of precision APP RWY	Slope of runway and associated stopway	Dimensions of stopway (M)	Dimensions of clearway (M)	Dimensions of strips (M)
6	7	8	9	10
THR: 315.0FT TDZ: 339.0FT	0.30%	NIL	NIL	2980 x 150 M
THR: 326.0FT TDZ: 328.0FT	-0.30%	NIL	NIL	2980 x 150 M

THR elevation

and highest

elevation of

TDZ of

precision APP

RWY

Slope of

runway and

associated

stopway

Dimensions of

stopway

(M)

Dimensions of

clearway

(M)

Dimensions of

strips

(M)

THR: 315.0FT

TDZ: 339.0FT

0.30%

NIL

2980 x 150 M

THR: 326.0FT

TDZ: 328.0FT

-0.30%

NIL

2980 x 150 M

Dimensions of runway end safety areas	Location and description of arresting system (if any)	Existence of an obstacle-free zone	Remarks.
11	12	13	14
240M x 90M	NIL	NIL	NIL
240M x 90M	NIL	NIL	NIL

Dimensions of

runway end

safety areas

Location and

description of

arresting system

(if any)

Existence of an

obstacle-free

zone

Remarks.

240M x 90M

NIL

240M x 90M

NIL

VOCL

AD 2.13

DECLARED DISTANCES

RWY Designator

Take-off

run

available

TORA

(M)

Take-off

distance

available

TODA

(M)

Accelerate

distance

available

ASDA

(M)

Landing

distance

available

LDA

(M)

Remarks

(including runway

entry or start point

where alternative

reduced declared

distances have

been declared)

2700

Portion of RWY length beyond 2700 M available for Taxing and 180DEG at

existing turn pad.

2700

Portion of RWY length beyond 2700 M available for Taxing and 180DEG at

existing turn pad.

VOCL

AD 2.14

APPROACH AND RUNWAY LIGHTING

Runway Designator	Type, length and intensity of approach lighting system	Runway threshold lights, colour and wing bars	Type of visual slope indicator system	Length of runway touchdown zone lights
1	2	3	4	5
10	SALS 150 M Abridged LIH	Green	PAPI LEFT/3.00 DEG MEHT (65.06FT)
28	SALS 150 M Abridge LIH	Green	PAPI LEFT/3.20 DEG MEHT (70.47FT)

Runway

Designator

Type, length and

intensity of

approach lighting

system

Runway threshold

lights, colour and

wing bars

Type of visual

slope indicator

system

Length of runway

touchdown zone

lights

SALS

150 M

Abridged

LIH

Green

PAPI

LEFT/3.00 DEG

MEHT

(65.06FT)

SALS

150 M

Abridge

LIH

Green

PAPI

LEFT/3.20 DEG

MEHT

(70.47FT)

Length, spacing, colour and intensity of runway centre line lights	Length, spacing, colour and intensity of runway edge lights	Colour of runway end lights and wing bars	Length and colour of stopway lights	Remarks
6	7	8	9	10
	2700 M 60 M White LIH	Red	NIL	1.RWY THR IDENT LGTS 2.SIMPLE TDZ LGTS (REF AD 2.24.4) Available
	2700 M 60 M White LIH	Red	NIL	1.RWY THR IDENT LGTS 2.SIMPLE TDZ LGTS (REF AD 2.24.4) Available

Length, spacing,

colour and

intensity of

runway centre line

lights

Length, spacing,

colour and

intensity of

runway edge lights

Colour of runway

end lights and

wing bars

Length and colour

of stopway lights

Remarks

2700 M

60 M

White

LIH

Red

NIL

1.RWY THR IDENT LGTS

2.SIMPLE TDZ LGTS (REF AD 2.24.4) Available

2700 M

60 M

White

LIH

Red

NIL

1.RWY THR IDENT LGTS

2.SIMPLE TDZ LGTS (REF AD 2.24.4) Available

VOCL

AD 2.15

OTHER LIGHTING, SECONDARY POWER SUPPLY

1	Location, characteristics and hours of operation of aerodrome beacon/identification beacon (if any)	ABN	At Tower Building, FLG W&G26 flashes/min, AS ATS
		IBN	NIL
2	Location and lighting (if any) of anemometer/landing direction indicator;	LDI	LDI: (Outlined by white lights):225M NW of ARP Abeam (left side) RWY THR 10 & 28, & 2130M from RWY 28 THR.
		Anemometer	2320M from THR RWY 28 on northern side of RWY
3	Taxiway edge and taxiway centre line lights;	Edge	Lighted
		Centre Line	Not Lighted
4	Secondary power supply including switch-over time;	Secondary power supply to all essential lighting and operational units at AD. Switch-over time:8 sec APCH/RWY (Primary Circuit), PAPI & all NAV/COM AIDS. Switch over time: Zero.
5	Remarks	RWY 28 Lead-in-lighting system: 4 Light units, each consisting of a group of 3 sequential flashing white lights in a linear configuration installed on the FINAL APP. TRACK, of RWY 28, at a distance of 6193M, 4721M, 3121M, and 1826Mrespectively from THR RWY 28. Light unit situated at 3121M from THR RWY 28 is offset by 16.5M towards right while approaching of extended RWY centreline. Intensity - 300cd/1500cd/15000cd.

VOCL

AD 2.16

HELICOPTER LANDING AREA

1	Geographical coordinates of the geometric centre of touchdown and lift-off (TLOF) or of each threshold of final approach and take-off (FATO) area	Not Established
2	TLOF and/or FATO area elevation:	Not Established
3	TLOF and FATO area dimensions to the nearest metre or foot, surface type, bearing strength and marking;	Not Established
4	True bearings of FATO;	Not Established
5	Declared distances available	Not Established
6	Approach and FATO lighting;	Not Established
7	Remarks	Not Established

VOCL

AD 2.17

AIR TRAFFIC SERVICE AIRSPACE

1	Airspace designation, geographical coordinates and lateral limits	CTR: Area bounded by lines joining points 111559N 0762114E; 111500N 0763100E; 105500N 0762900E; 105559N 0761912E then along the clockwise arc of a circle of 25NM radius centred on ARP VOCL (110816N 0755702E) to point of origin.
2	Vertical limits	5500 FT
3	Airspace classification	D
4	Call sign and language(s) of the air traffic services unit providing service;	Calicut Tower/ Calicut Approach, English
5	Transition altitude	10000 FT
6	Hours of applicability	H24
7	Remarks	Aerodrome Control & SMC services provided by Calicut Tower. Independent APP unit operational, Operational hrs as per NOTAM.

VOCL

AD 2.18

AIR TRAFFIC SERVICES COMMUNICATION FACILITIES

Service Designation	Call sign	Channel(s)	SATVOICE Number(s), if available
1	2	3	4
APP	Calicut Tower/ Calicut Approach	119.150 MHZ
APP	Calicut Tower/ Calicut Approach	122.950 MHZ
TWR	Calicut Tower	123.350 MHZ
ATIS	Calicut Information	127.000 MHZ
SMC	Calicut GND	121.625 MHZ

Logon address, as appropriate	Hours of operation	Remarks
5	6	7
	H24	DLY BTN 0130-0730 AND 1330-1630 INDEPENDENT APP UNIT (STANDBY)
	H24	DLY BTN 0130-0730 AND 1330-1630 INDEPENDENT APP UNIT MAIN
	H24	Primary
	H24	--
	H24	On Requirement Basis

VOCL

AD 2.19

RADIO NAVIGATION AND LANDING AIDS

Type of aids, magnetic variation and type of supported operation for ILS/MLS, basic GNSS, SBAS and GBAS, and for VOR/ILS/MLS station used for technical lineup of the aid	Identification	Frequency(ies), Channel number(s), Service provider, and reference path identifier(s) (RPI), as appropriate	Hours of operation, as appropriate;
1	2	3	4
LOC 28	ICAC	109.500 MHz	H24
LOC 10	ICLB	110.700 MHz	H24
GP 28	ICAC	332.600 MHz	H24
GP 10	ICLB	330.200 MHz	H24
DME ILS 28	ICAC	CH32X	H24
DME ILS 10	ICLB	CH44X	H24
DVOR/DME	CLC	116.500 MHz CH112X	H24

Geographical coordinates of the position of the transmitting antenna	Elevation of transmitting antenna of DME/ elevation of GBAS reference point	Service volume radius from the GBAS reference point	Remarks
5	6	7	8
110819.3N 0755629.2E
110759.9N 0755811.0E
110805.0N 0755756.5E
110812.7N 0755642.5E
110805.1N 0755756.6E	337 FT		1. Collocated with GP 28 2. Geoid Model Used: EGM08
110812.7N 0755642.5E	343 FT		1. Collocated with GP 10 2. Geoid Model Used: EGM08
110803.0N 0755723.7E	353 FT		Elevation in EGM08 DME CO-LOCATED WITH DVOR

VOCL

AD 2.20

LOCAL AERODROME REGULATIONS

~~1. PUSHBACK PROCEDURES: -~~

1. AIRCRAFT PARKING AND PUSH BACK PROCEDURES

~~i. Stand No. 1 to 10 and stand No. 5A & 12 are power in/pushback stands.~~

~~ii. Stand No. 11 and 11A are power in/power out stands. The Stand No. 11A is a dependent stand for taxi out. Aircraft from Stand No. 11A can taxi out only when Stand No. 11 is vacant.~~

~~iii. When stand No. 5A is occupied by code E aircraft, the aircraft on Stand No. 1 shall be pushed back via taxiway A to the runway.~~

i. All aircraft stands are power in/pushback

ii. Stand no.1, 2, 3, 7, 11, 12 and13 for code-C or lesser type of aircraft (wing span less than 36m and length less than

45m)

iii. Stand no.6 for code C or lesser type of aircraft wing span less than 36m and length less than 45m and shall be used as

remote stand only

iv. Stand 4 and 8 are for A300-600 or lesser type of aircraft (wing span less than 45m and length less than 55m). A300-600

or other code-D aircraft to stand no.4 shall taxi in/taxi out via TWY A only and shall be pushed back to left side so as to

~~iv.~~ take left turn into TWY A. A300-600 or other ~~Code~~ code-D aircraft to stand ~~No. 4 & 5~~ 8 shall taxi-in/taxi-out via ~~taxiway A or~~ TWY B only..

v. Stand 5 is for B757-300 or lesser type of aircraft (wing span less than 39m and length less than 55m) B757-300 or other

code-D aircraft to stand no. 5 shall taxi-in/taxi-out via TWY A only and shall be pushed back to left side so as to take

left turn into TWY A.

vi. Stand 10 for code-D or lesser type of aircraft (wing span less than 52m and length less than 62m). If stand 9 and 12A

are occupied by code-E aircraft, then stand no.10 to be allotted to code-C aircraft only.

vii. Stand 5A is for code-E or lesser type of aircraft (wing span less than 65m and length less than 75.5m) and shall be

~~v. Aircraft for stand No. 5A is~~ allotted only when stand Nono. 4 &and 5 are vacant. Aircraft ~~for~~ to stand ~~No.~~ 5A to shall taxi- -in and pushback to runway via ~~taxiway~~ TWY A ~~only.~~

only.

viii. Stand 9 for code-E or lesser type of aircraft (wing span less than 65m and length less than 75.5m) and shall be allotted

~~vi. When~~ only when stand Nono. ~~5A and/or stand 9~~ 7 and 8 are ~~occupied, aircraft for stand No~~vacant. 6 Aircraft to stand 9 shall taxi-in and pushback ~~out~~ to runway via ~~taxiway~~ TWY B only.

~~vii. The A310 or other code-D aircraft for stand No 8 shall taxi-in/taxi-out via taxiway A & B only when stand No. 11A or 12 are occupied.~~

~~viii. Stand No. 9 is allotted to an aircraft only when stands 7 & 8 are vacant. Aircraft to stand No. 9 to taxi-in and pushback to runway via taxiway B only.~~

~~ix. When Stand Nos. 12 & 9 are occupied, aircraft to Stand No. 10 to taxi-in and pushback via taxiway C.~~

~~x. Stand No. 11 is for B737-800W or smaller type of aircraft. Stand No. 11 can be allotted only when Stand No. 11A is vacant. Taxi-in to stand 11 is via stand 11A and aircraft parking is facing SW.~~

xi. Stand No. 11A is for B737-800 W or smaller type of aircraft and aircraft parking is facing North-Easts. Aircraft to taxi-out from stand 11A via stand No. 11. If Stand No. 11 is occupied, aircraft needs to be pushed back.

xii. Stand No. 12 is for B777-300 ER/B747-400 or lesser type category aircraft and is allotted only when 7, 8, 9, 10, 11 & 11A are vacant. Aircraft on Stand No. 12 is to be pushed back on to RWY via TWY C only.

ix. Stand 12A for code-E or lesser type of aircraft (wing span less than 65m and length less than 75.5m) and shall be

allotted only when stand 11 and 12 are vacant and stand no.10 is occupied by code-C aircraft. Aircraft to stand 12A

shall taxi-in and pushback to runway via TWY C only.

x. Aircraft from stand no. 1 shall pushback facing west to taxi-out via TWY A and aircraft from stand no.13 shall

pushback facing east or as instructed by ATC.

2. Intersection Take-off from RWY 10/28 Not permitted.

3. All aircrafts to strictly follow Taxi guidelines for 180 DEG turn on RWY turn pads to avoid damages to the pavement.

xiii. Aircraft on Stand No. 1 to 8 can taxi via Taxiway ‘C’, only when Stand No. 5A & 9 are vacant.

NOTE: Code-E Aircraft require pushback on to the Runway for start-up.

2. Intersection Take-off from RWY 10/28 Not permitted.

VOCL

AD 2.21

NOISE ABATEMENT PROCEDURES

NIL

VOCL

AD 2.22

FLIGHT PROCEDURES

ADS-B based ATS Surveillance services are provided to suitably equipped aircraft on opportunity basis within the coverage area of Calicut ADS-B sensors in the jurisdiction of Calicut Approach control.

ADS-B equipped aircraft flying within Calicut Approach Control to comply with relevant provisions.

Refer NOTAM for hours of services.

VOCL

AD 2.23

ADDITIONAL INFORMATION

1. . Details of aircraft stands available at Calicut International Airport:

Stand No.		Coordinates	Elevation (FT)	Bearing Strength & Surface
1	110821.09N 0755655.85E		332	68/R/A/W/T Cement Concrete
2	110820.84N 0755657.17E		333	53/R/A/W/T Cement Concrete
3	110820.89N 0755658.55E		334	53/R/A/W/T Cement Concrete
4	110820.67N 0755700.12E		334	53/R/A/W/T Cement Concrete
5	110820.35N 0755701.82E		334	53/R/A/W/T Cement Concrete
5A	110820.48N 0755701.99E		333	53/R/A/W/T Cement Concrete
6	110820.19N 0755703.30E		333	53/R/A/W/T Cement Concrete
7	110819.74N 0755704.60E		333	53/R/A/W/T Cement Concrete
8	110819.52N 0755706.16E		333	53/R/A/W/T Cement Concrete
9	110819.66N 0755706.32E		333	68/R/A/W/T Cement Concrete
10	110819.55N 0755708.06E		334	68/R/A/W/T Cement Concrete
11	110818.65N 0755709.62E		334	68/R/A/W/T Cement Concrete
12	110818.54N 0755710.99E		333	68/R/A/W/T Cement Concrete
12A	110818.18N 0755711.28E		333	68/R/A/W/T Cement Concrete
13		110818.17N 0755712.30E	332	68/R/A/W/T Cement Concrete
Remark:- i. Aerobridge with VDGS available for Stands 4, 5, 8, 10, 11 AND 12. ii. Aerobridge service available for Stands no. 5A, 9 and 12A without VDGS. iii. For further details refer aircraft Parking/Docking Chart.

~~Remarks: -~~

~~i. Aerobridge stands- Stand Nos. 04, 05 & 08.~~

~~ii. Aerobridge service available for Stand Nos. 5A and 9 also.~~

2. The aerodrome is licensed for use in IFR (all weather) condition. Aircraft operator to ensure that pilot in command/flight

crew, operating flights to/from Calicut during night have sufficient experience in terms of flying hours as well as experience

of day operation at Calicut aerodrome. In addition, all approaches in the night must be initiated with an IAL procedure only.

3. Details of TWY C: Location: PARL to and to the eastern side of TWY 'B' connecting RWY and APN at an angle of 90

DEG.TWY 'C'AVBL for code 'E' ACFT and lesser type. H-24, trapezoidal turning pad on southern side of RWY28 beginning

AVBL. PCN 55/F/A/X/T. shoulders 10.5M. Semicircular turning pad on the northern side of RWY28 beginning not usable.

4. RWY end light to indicate RWY 28 and RWY 10 end provided in the form of inset RWY end light.

5. Commissioning of ADS-B at Calicut Airport

Facility: ADS-B

Freq: 1090MHZ

Coord: 110822N 755655E

Site Elev: 122.5 AMSL

6. Intermediate turn pad provided to the north of RWY at 2250m from the beginning of Rwy10 for aircraft type upto code-C.

7. Fixed distance markers provided onthe left side of RWY in use.

8. SIMPLE TOUCHDOWN ZONE LIGHTS

New facility Simple TDZ LGT installed on the RWY at the end of Final TDZ Markings. A Pair of variable White LGT on each side of the RCL Visible from Landing Direction. Pilots are required to familiarize with the new facility to avoid confusion/optical illusion.

Details:

8.1 Simple Touchdown Zone lights consist of a pair of lights located on each side of the runway center line, 0.3meters beyond

the upwind edge of the final Touchdown Zone Marking.

8.2 Simple Touchdown Zone Lights are installed at distance of 922.8M from threshold.

8.3 The spacing between the lights of the same pair is 1.5M.

8.4 The lateral spacing between the inner lights of the two pairs of lights is 18M.

8.5 The colour of Simple Touchdown Zone Lights is variable white.

8.6 Simple Touchdown Zone Lights are unidirectional inset lights facing an approaching aircraft.

8.7 Simple Touchdown Zone Lights are linked with HIRL system.

8.8 Simple Touchdown Zone Lights will be available only when runway lights are switched ON.

8.9 Intensity control is possible along with HIRL system only.

8.10 During VMC, Simple Touchdown Zone Lights will not be available.

8.11 All Runway Markings are available.

9. All ACFT to strictly follow Taxi guide lines for 180 DEG Turn on RWY Turn pads to avoid damages to the pavment.

VOCL

AD 2.24

CHARTS RELATED TO AN AERODROME

1.	Aerodrome Chart
1.	Aerodrome Chart
2.	Aircraft Parking/Docking Chart
3.	Aerodrome Obstacle Chart - Type A (Operating Limitations) RWY 10
4.	Aerodrome Obstacle Chart - Type A (Operating Limitations) RWY 28
5.	Aerodrome Obstacle Chart - Type B
6.	Simple Touch Down Zone Lighting
7.	ILS (Z) Procedure RWY 10
8.	ILS (Z) Procedure RWY 28
9.	VOR (Z) Procedure RWY 10
10.	VOR Procedure RWY 28
11.	ATC Surveillance Minimum Altitude Chart
12.	RNP Y Procedure RWY 10
13.	Coding Table - RNP Y Procedure RWY 10
14.	Waypoints - RNP Y Procedure RWY 10
15.	RNP Y Procedure RWY 28
16.	Coding Table - RNP Y Procedure RWY 28
17.	Waypoints - RNP Y Procedure RWY 28
